Board Components

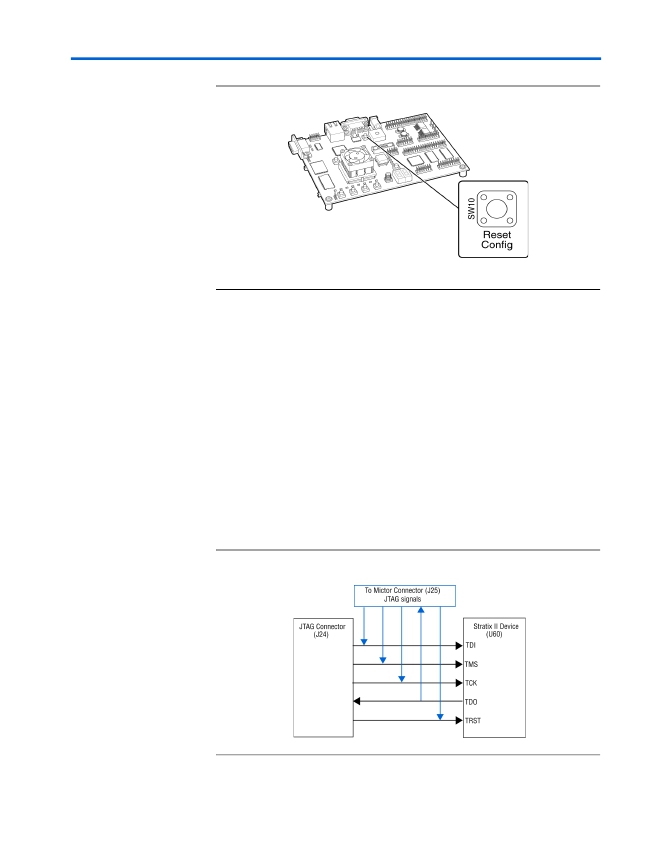

Figure 2–17. Reset, Config Button

JTAG

Connectors (J24

& J5)

Altera Corporation

July 2005

The Nios development board, has two 10-pin JTAG headers (J24 and J5)

compatible with Altera download cables, such as the USB-Blaster ? . Each

JTAG header connects to one Altera device and forms a single-device

JTAG chain. J24 connects to the Stratix II device (U60), and J5 connects to

the EPM7128AE device (U3).

JTAG Connector to Stratix II Device (J24)

J24 connects to the JTAG pins (TCK, TDI, TDO, TMS, TRST) of the

Stratix II device (U60) as shown in Figure 2–18 . Altera Quartus II

software can directly configure the Stratix II device with a new hardware

image via an Altera download cable as shown in Figure 2–19 . In addition,

the Nios II IDE can access the Nios II processor JTAG debug module via

a download cable connected to the J24 JTAG connector.

Figure 2–18. JTAG Connector (J24) to Stratix II Device

2–31

Nios Development Board Reference Manual, Stratix II Edition
